Axion turn assist system AI40 - artificial intelligence - BMVI compliant incl. ABE
Product information "Axion turn assist system AI40 - artificial intelligence - BMVI compliant incl. ABE"
The poor visibility in buses / trucks during turning and maneuvering often leads to accidents with cyclists and pedestrians (VRUs). The collisions of commercial vehicles with VRUs are among the most serious accidents. To avoid this and support the driver, the turn assistants from AXION continuously monitor the blind spot next to the vehicle and warn the driver in dangerous situations.
The new generation of the ICA Turn-Assist uses state-of-the-art technology. With the help of artificial intelligence, the camera image is continuously evaluated. As soon as a VRU is in the coverage area, the driver is alerted. In case of collision danger, an additional warning is issued. The multi-level warning concept helps the driver to better assess the situation and avoid accidents.
System overview:

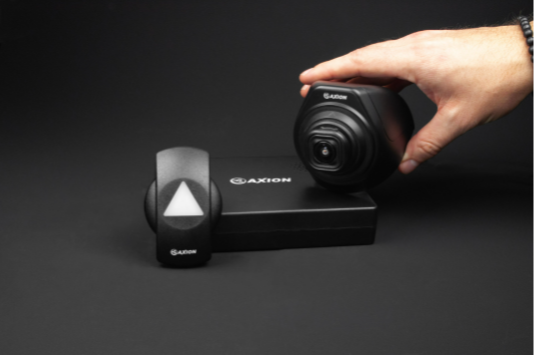

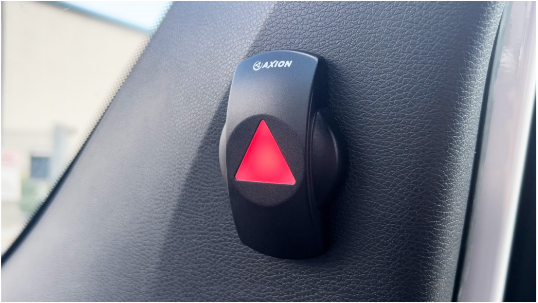

- Compact system consisting of a smart AI camera, LED warning display, buzzer, and control unit
- Development according to the latest BMVI standard
- Reliable detection of moving cyclists and persons (VRU) through object classification
- Multi-level information/warning strategy to support & relieve the driver
- Avoidance of unwanted warnings by filtering out static objects and vehicles
- Special camera design with drip edge to protect against rainwater accumulation on the lens
- Flexibly retrofittable in almost all vehicles thanks to a wide installation range
- Simple and quick installation without additional sensors
- Optional display of the camera image on an AXION or existing monitor (adaptation may be required)
Application area:
The system has been developed for commercial vehicles (classes N2 and N3), as well as buses (classes M2 and M3) with more than nine seats including the driver's seat, which meet the following installation conditions. The system can also be used for vehicles with <3.5T weight if the possible installation position allows it.
Optional accessories:
- Camera design housing
- Additional monitor (e.g. CRV 7105 M HD)
- Model-specific installation kits and mounts
- Helper mat for system calibration
| Diameter: | 50 mm x 46 mm (WxH) |
|---|---|
| Operating voltage: | 9-36 Vdc, 9-36 Volt |
| Protection class: | IP69K |
| Video format: | PAL/NTSC |
