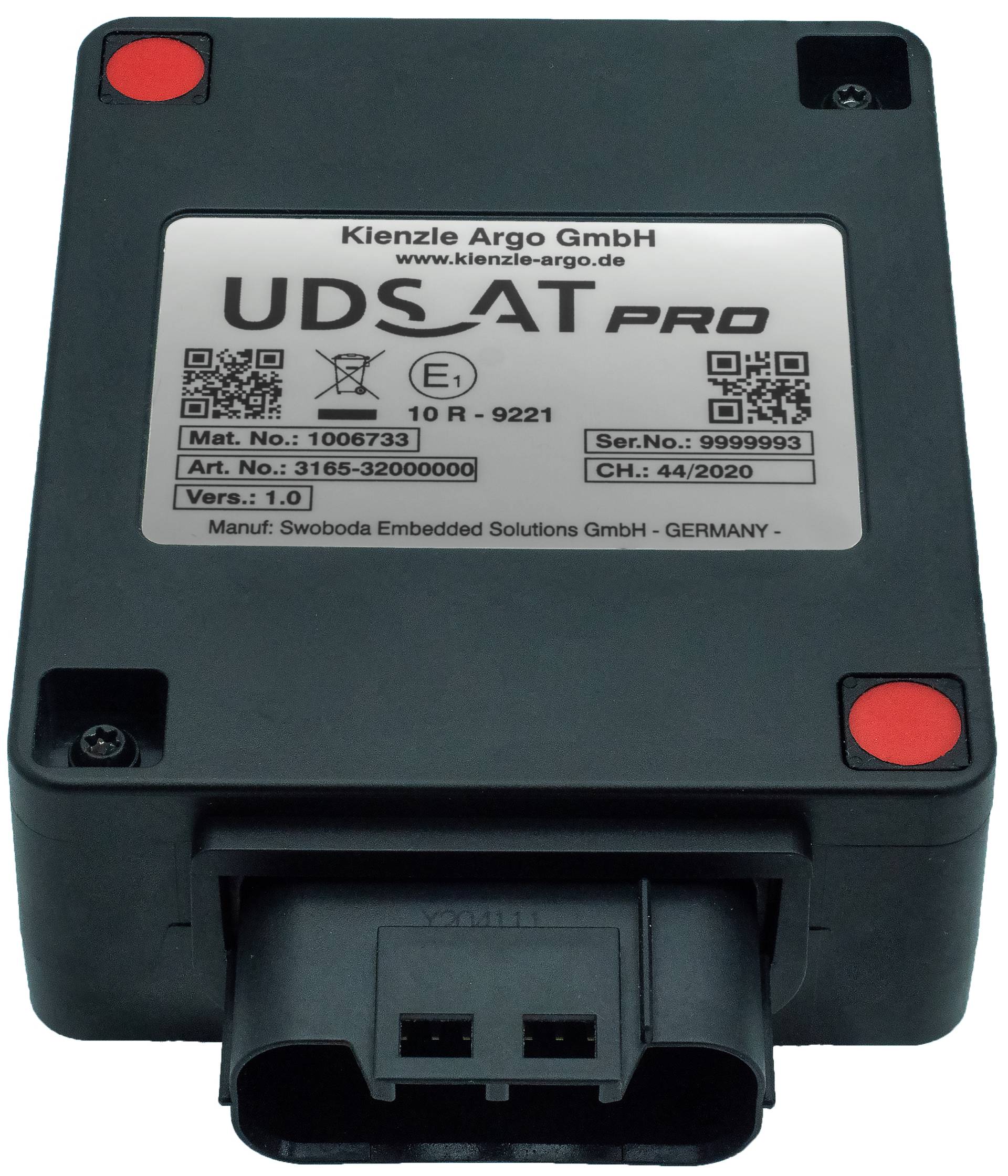

UDS-AT Pro basic device
Product information "UDS-AT Pro basic device"
The UDS-AT Pro is an advanced accident data recorder (“black box”) for vehicles. It records important data during accidents or unusual driving situations – for example:
- Accelerations and rotational movements (3D sensor technology)
- Vehicle signals such as speed, brake, lights, turn signals, etc.
- Optionally recordable CAN signals
Such data can later be used for accident reconstruction, analysis of driving behavior, clarification of damages, or even as legally admissible evidence.
What is UDS-AT Pro used for?
The UDS-AT Pro is particularly used for:
- Reconstruction of accidents and events
- Fleet management & driving behavior analysis
- Insurance and legal evaluation
- Objective data collection in traffic incidents
Technical background (UDS)
The name UDS stands for Unified Diagnostic Services, an international diagnostic communication standard in the vehicle sector (ISO 14229), which is typically used via CAN bus.
Specifications:
▪26-pin central connector (power supply, inputs and outputs, control panel interface, and reading line)
▪Multi – power supply unit (12V DC / 24V DV on-board network)
▪1x High Speed – CAN / CiA447 interface (Multiple recordable CAN signals up to 16 different CAN messages, up to 24 different CAN signals can be processed.)
▪ Ability to process extended CAN signal information (off, on, valid, invalid, error, not installed)
▪Digital inputs and outputs
▪1X High Speed – CAN interface to the UDS button
▪Service interface (USB 2.0 High Speed)
Delivery scope:
- UDS-ATpro basic device
- Packing bag (1x sealing cap 9 mm, 4x adhesive seals round)
- Short operating manual UDS-ATpro
