VDO pressure sender, 10 bar, 1/8''-27, via ground, warning contact 1,25 +/- 0,3 bar
Product number:
24208
Product information "VDO pressure sender, 10 bar, 1/8''-27, via ground, warning contact 1,25 +/- 0,3 bar"
Product information "1,25 +0,3 bar / 18,1 psi (1/8" – 27 NPTF) with warning contact, common ground"
- Pressure measuring range: 0 to 10 Bar
- Thread: 1/8 - 27 NPTF
- Resistance values: 10 - 184 Ohm

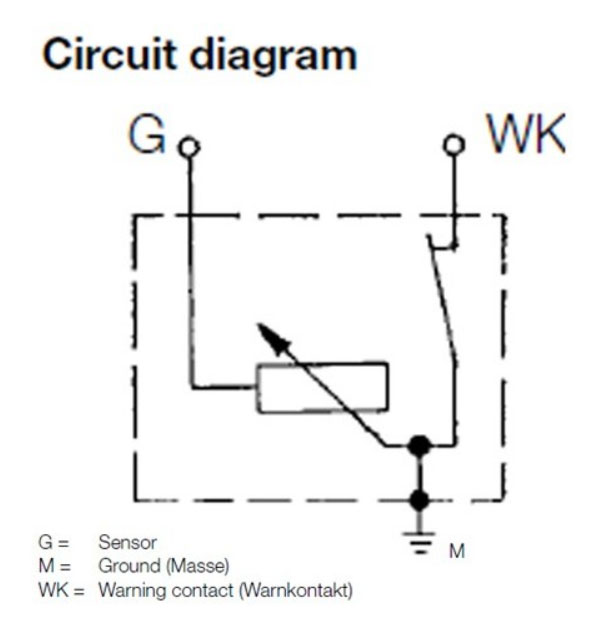

- Output: 1-pole via ground
- Warning contact: 1.25 Bar ± 0.30 Bar
- L1: 19,5mm
- L2: 11mm
| Length (mm): | 19.5 |
|---|---|
| Measuring range: | 0-10 bar |
| Medium: | Air, Engine oil, Fuel, Motor oil, Motor oil, Transmission oil, Transmission oil, Transmission oil |
| Scale: | bar |
| Thread: | 1/8 " 27 NPTF, 1/8" - 27 NPTF |
| Warning contact: | Without warning contact, yes |
| Warning contact threshold: | 1.25 +/- 0.3 bar |
