VDO pressure sender, 10 bar, M10x1, via ground, warning contact 0,5 +/- 0,15 bar
Product number:
360-081-030-009C
€87.66*
Delivery time Note: Delivery will be made as soon as possible (exact date is currently not possible). As soon as product availability is confirmed by the manufacturer, orders will be shipped in the order they were received.
Product information "VDO pressure sender, 10 bar, M10x1, via ground, warning contact 0,5 +/- 0,15 bar"
0,5 ± 0,15 bar / 7,3 ± 2,2 psi (M10 x 1 conical, short) with warning contact, common ground
VDO oil pressure sender manometer sender, with warning contact at 0,5 bar (+/- 0,15):
- for connection to VDO oil pressure gauge
- Measuring range: 10 bar
- Maximum load: 30 bar (max. 2 seconds)
- Thread: M10x1 conical short
- Connection type A (2 x knurled nut M4)

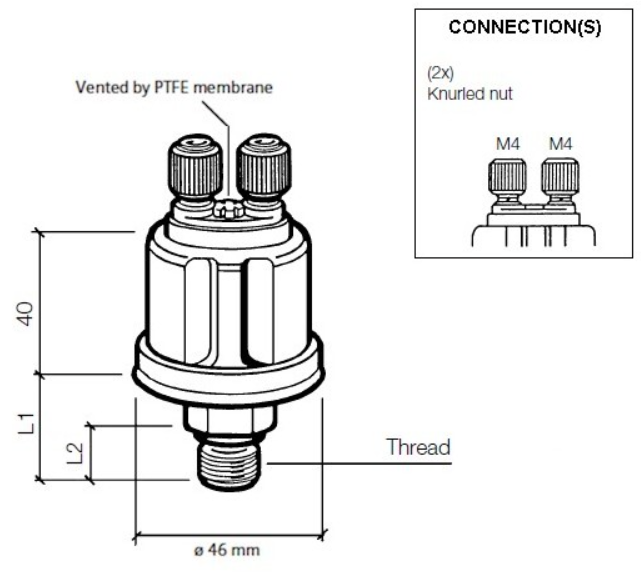

- Dimensions: L1 = 19,5 mm, L2 = 11,0 mm
- Nominal voltage: 6-24 volts
- Operating temperature: -25° to +100° Celsius
- Resistance range: 10 to 184 Ohm
- VDO part no.: 360-081-030-009C
| Length (mm): | 19.5, 20.5 |
|---|---|
| Measuring range: | 0-5 bar, 0-5 bar, 0-10 bar |
| Medium: | Air, Engine oil, Fuel, Motor oil, Motor oil, Transmission oil, Transmission oil, Transmission oil |
| Scale: | bar |
| Thread: | M10 x 1 keg., M12 x 1,5 |
| Warning contact: | Without warning contact, yes |
| Warning contact threshold: | 0.5 +/- 0.15 bar |
