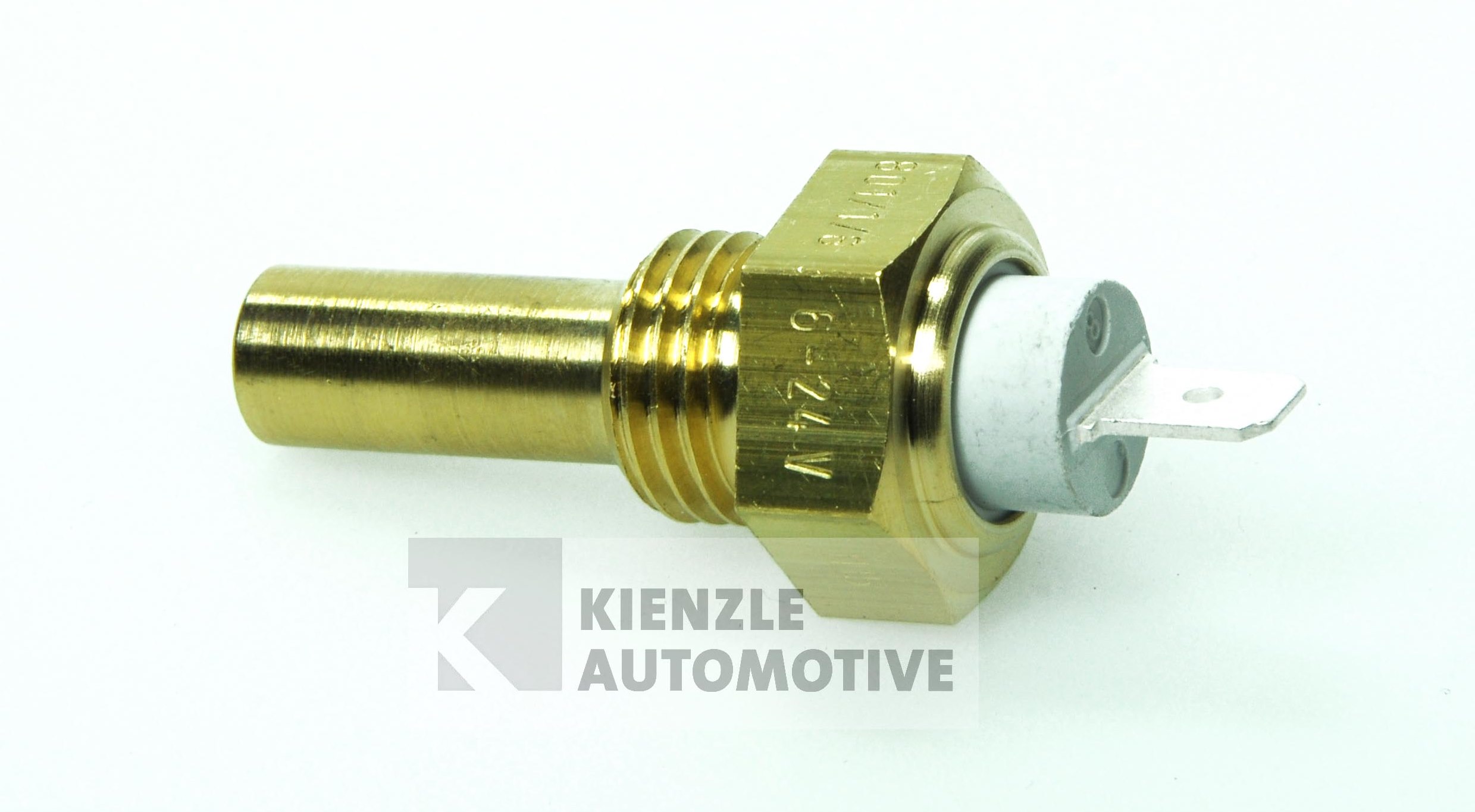

VDO temperature sender, 120°, M14x1,5, via ground
Product number:
14813
Product information "VDO temperature sender, 120°, M14x1,5, via ground"

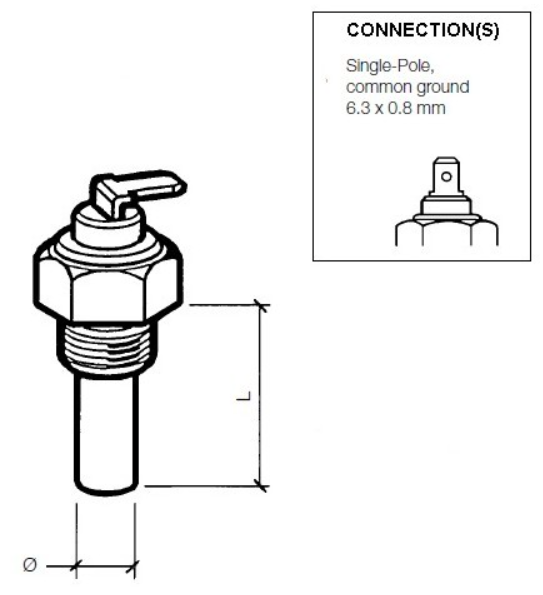

Product information "40 – 120 °C / 105 – 250 °F (M14 x 1,5) Single-pole, common ground"
VDO temperature sender / temperature sensor / temperature sensor, cooling water, 120 degrees Celsius - for connection to VDO temperature gauge
- Thread: M14x1,5
- Connection type A: Flat connector straight, 6,3 x 0,8 mm
- 1-pole via ground
- Design: NTC thermistor
- Nominal voltage: 6 - 24 V
- Temperature adjustment time: Min. 3 minutes after system is powered on
- Screw-in length = 29 mm - Diameter = 9 mm
| Length (mm): | 22, 29 |
|---|---|
| Measuring range: | 40-120 degrees |
| Medium: | Air, Coolant, Coolant, Engine oil, Fuel, Motor oil, Motor oil, Transmission oil, Transmission oil, Transmission oil, Water |
| Scale: | Degrees Celsius |
| Thread: | M10 x 1 keg., M14 x 1,5 |
| Warning contact: | Without warning contact, no |
