VDO temperature sender, 150°, M12x1,5, via ground, former 323-801-010-003K
Product number:
33401
Product information "VDO temperature sender, 150°, M12x1,5, via ground, former 323-801-010-003K"
VDO temperature sender / temperature sensor / temperature sensor, engine oil, 150 degrees Celsius

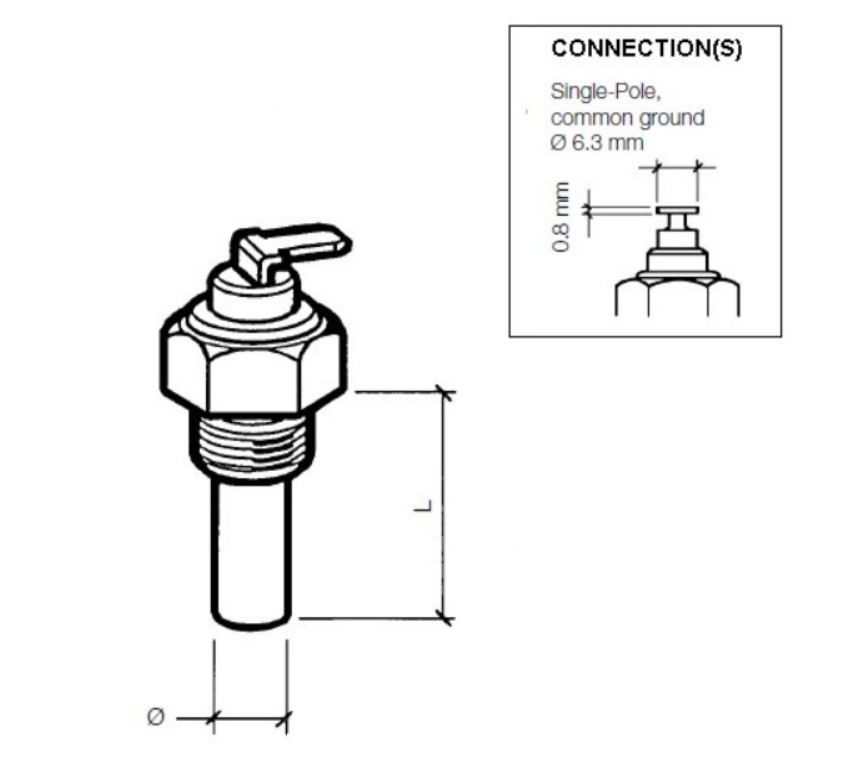

- Thread: M12x1,5
- for connection to VDO temperature gauge
- Connection type C: flat connector round, 6,3 x 0,8 mm
- 1-pole via ground
- Design: thermistor (NTC)
- Nominal voltage: 6 - 24 V
- Temperature adjustment time: min. 3 minutes after the operating system is switched on
- Screw-in length = 22 mm - diameter = 6,9 mm
- VDO part number A2C1755410001 (old = 323-801-010-003K)
| Length (mm): | 22, 29 |
|---|---|
| Measuring range: | 40-120 degrees, 50-150 degrees |
| Medium: | Air, Coolant, Coolant, Engine oil, Fuel, Motor oil, Motor oil, Transmission oil, Transmission oil, Transmission oil, Water |
| Scale: | Degrees Celsius |
| Thread: | 1/2" - 14 NPTF, M12 x 1,5 |
| Warning contact: | Without warning contact, no |
