Axion turn assist system XR45 Combo Radar - BMVI compliant incl. ABE

Description:

The poor visibility in buses / trucks during turning and maneuvering often leads to accidents with cyclists and pedestrians (VRUs). The collisions of commercial vehicles with VRUs are among the most serious accidents. To avoid this and support the driver, the turn assistants from AXION continuously monitor the blind spot next to the vehicle and warn the driver in dangerous situations.

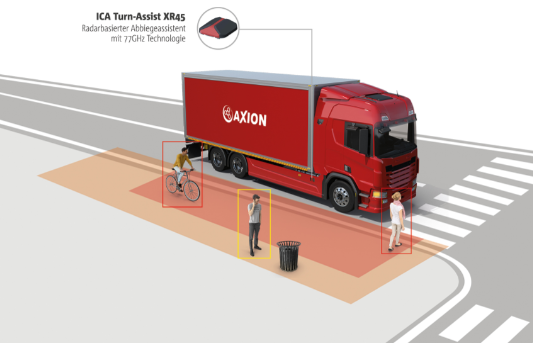

The new generation of the ICA Turn-Assist uses state-of-the-art technology. With the help of two high-precision radar sensors, the blind spot is continuously checked. As soon as a VRU is in the coverage area, the driver is alerted. In case of collision danger, an additional warning is issued. The multi-stage warning concept helps the driver to better assess the situation and avoid accidents.

System overview:

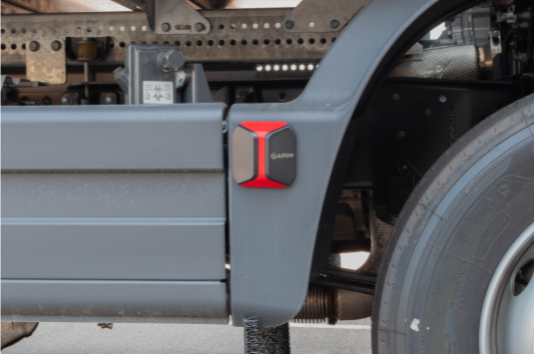

• Dual radar with high-resolution 77GHz technology in a compact design housing
• Development according to the latest BMVI standard
• Reliable detection of moving cyclists and pedestrians (VRU) through object classification

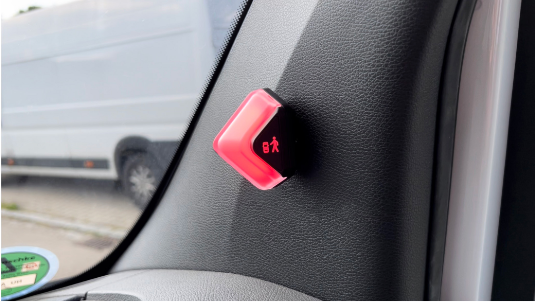

• Multi-stage information/warning strategy to support and relieve the driver
• Avoidance of unwanted warnings by filtering out static objects and vehicles
• Dynamic detection range depending on vehicle length
• Automatic trailer detection for towed units
• Flexibly retrofittable in almost all vehicles thanks to a wide installation range
• Simple and quick installation without additional sensors
• Optionally expandable with side camera and monitor

Application area:

The system has been developed for commercial vehicles (classes N2 and N3), as well as buses (classes M2 and M3) with more than nine seats including the driver's seat, which meet the following installation conditions. The system can also be used for vehicles with <3.5T weight if the possible installation position allows it.

Optional accessories:

• Model-specific installation kits and mounts
• Camera-monitor system*

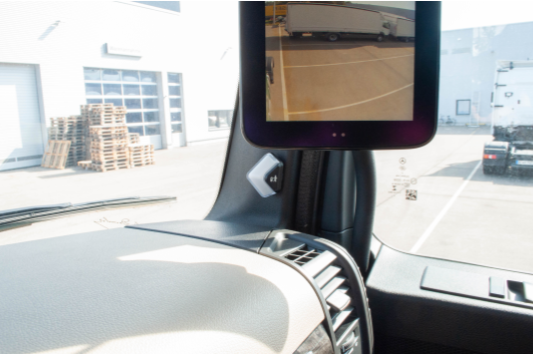

* For better visibility, the turn assist can be expanded with a camera-monitor system. For this purpose, a camera is mounted outside the vehicle, which shows the coverage area, and a monitor is installed in the area of the A-pillar. Please contact AXION or your specialist dealer for recommendations.
