VDO pressure sender, 5 bar, M10x1, via ground

Product number: 360-081-029-001C

€69.10*

Prices excl. VAT plus shipping costs

Available, delivery time: Note: Delivery will be made as soon as possible (exact date is currently not possible). As soon as product availability is confirmed by the manufacturer, orders will be shipped in the order they were received.

Product information "VDO pressure sender, 5 bar, M10x1, via ground"

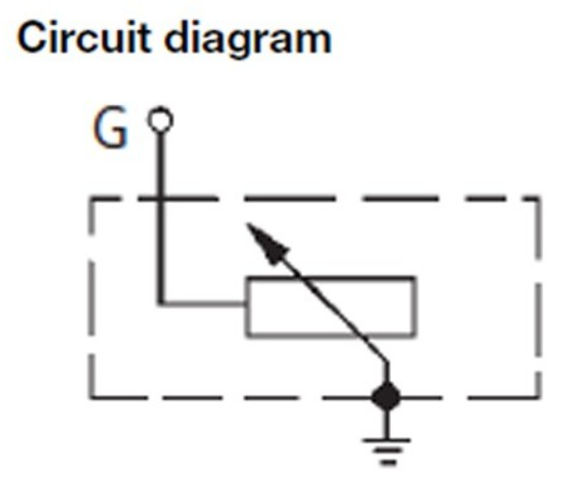

5 bar / 80 psi (M10x1 conical short) Single-pole, common ground

VDO oil pressure sender manometer sender without warning contact, 1-pole via ground

for connection to VDO oil pressure gauge
Measuring range: 5 bar
Maximum load: 30 bar (max. 2 seconds)

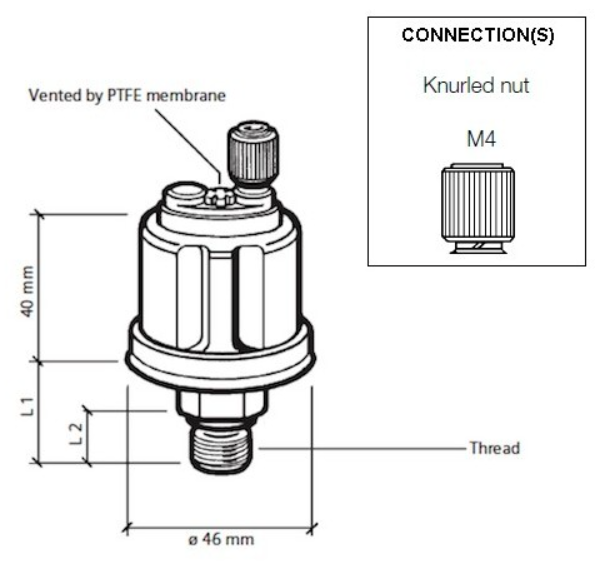

Thread: M10x1 conical short
Connection type A (knurled nut M4)
Dimensions: L1 = 19.5 mm, L2 = 11 mm
Nominal voltage: 6-24 volts
Operating temperature: -25° to +100° Celsius
Resistance range: 10 to 184 Ohm
VDO part no.: 360-081-029-001C

Length (mm):	19.5
Measuring range:	0-10 bar, 0.5 bar
Medium:	Air, Engine oil, Fuel, Motor oil, Motor oil, Transmission oil, Transmission oil, Transmission oil
Scale:	bar
Thread:	1/8 " 27 NPTF, 1/8" - 27 NPTF, M10 x 1 keg.
Warning contact:	With warning contact, no
Warning contact threshold:	1.25 +/- 0.3 bar
